Plugging Away in Vallejo

Having dedicated these days to the three dozen items on my winter to-do checklist, I hardly have time to write this blog. So, I’ll just have to add this to the list.

So, I figured I’d make goal, nice and high,  like 25%.

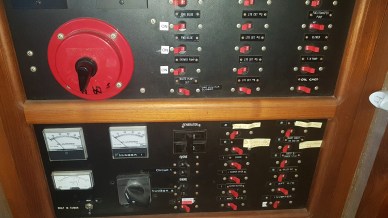

My salon electrical panel

What? You were expecting 110%?

I’m not one of those super achievers who when they want to paint the engine room, they take everything out, like engine, genny and all that crap glued to the walls.  Eek. Even writing that sends chills down my spine.

I have done a few things on the list. Maybe more than a few. Of course, I had to write a review for the local donut place. Well, not so local, but good donuts are worth the time.

The back of the salon electrical panel. the breaker I had the problem getting the screw back in was near the top of the picture middle column.

This wonderful marina  with covered dock, only supplies me one 30-amp circuit. It quickly became tiresome for me to change the dock plug from one circuit to the other, when I want to turn on the water heater or Splendid washer-dryer. So, in consultation with that Krogen guru, Dave Arnold, who pointed out  a far simpler method to power those items from the circuit that they are not on, from what I had originally devised. I proceeded to put a simple jumper off the breaker in the salon two days ago.

But then today, in a sure sign of mission creep, I decided to idiot proof my little setup.

In normal times, I run either two 30-amp lines to the boat or one 50 amp to a splitter that makes it into two 30’s for the boat. My main charger/inverter is on circuit 2, with most of the primary everyday stuff in the boats like the outlets and salon A/C. On Circuit 1, are the step children: washer dryer, water heater, chargers two and three and forward A/C unit.

So here, the dock power is plugged into circuit 2. In it’s previous life, this Kadey Krogen used to be a heavy 120v user, almost everything except for the navigation lights, radio and radar were household 120v.

Dauntless was going to be a cruising boat, not a dock queen, so from the beginning, my goal was to reduce that 120V dependence. First to go were the Subzero fridge and freezer; then thanks to Amazon, all the lights and/or bulbs were replaced by 12v LEDs. Boat computer, LCD monitors (Samsung 24”, there is at least one particular model that will work on 12v and in fact, works to about 11.5 v) and everything else in the pilot house are 12 votls.

The only 120v items that remain are one salon wall light that also serves as a 120v power tell tale and the older appliances that are not sued that often and thus not efficient to change such as the Raritan water heater, the Splendide washer dryer combo, the two A/C units and the microwave. That’s it.

This is the first time in months, I’ve needed the 120v water heater, as it also uses engine coolant to heat the water. But it’s cold up here and that first night back, taking a cold shower was enough for me to decide I needed a better plan. Replacing the heating element had been on my list of things to do for a while, as measured in years. While in Cabo I realized the water, heater was not working on electrical power. But, since I was seldom stopped long enough for the water to get cold, I didn’t need it until now.

So, the first day back, it was number one project. Of course, I had to get an inch and a half socket, but once that was done, it was all done, and we were good to go

Except we weren’t. Still no hot water.

Get the electric meter, umm should have done this first, only to discover that the problem was the thermostat. Well, that was easily bypassed. Now for the first time in a long time I had electrically heated hot water. I just had to remember to turn off the breaker after an hour or so.

Now I had the problem of having to move the dock plug every time I wanted to make hot water. I don’t like messing with the dock plug. If I’m moving it once a day, that’s a sure way to have some other issues. I needed a better solution.

So, two days ago, I made a jumper from a non-used breaker on circuit 2 to the water heater breaker on circuit 1.

I now had power to the water heater from circuit 2. Life was good.

I always want to make it better though, even if that has often not served me very well. A primary reason I’ve had few careers in my life, especially in Education, where there are too many adults who like the system just the way it is, words and promises notwithstanding.

But obvious solutions are sometimes not as simple as it seems. Thus, today I spent a couple of hours just trying to get one little screw back into the breaker. It was one of those old, straight cut, very short screws that were popular in the 60’s.  I tried grease, even glue, to get it to stay on the tip of the screw driver. I had only taken it out because I wanted to disconnect the line that was there. I knew it was going to an outlet that is not used, but I wanted to make sure that if I had power to both circuits 1 & 2, that I would not be feeding power where it was unexpected.

I just thought it better to remove the second lead from the load side of the breaker. Now, the breaker has only one load, no matter what.  On the picture, it’s the second breaker in the middle column in the lower part.

After doing that, it was easy to also add a jumper for the washer dryer. Those breakers were on the outside column, about a million times easier to access and that only took a few minutes.

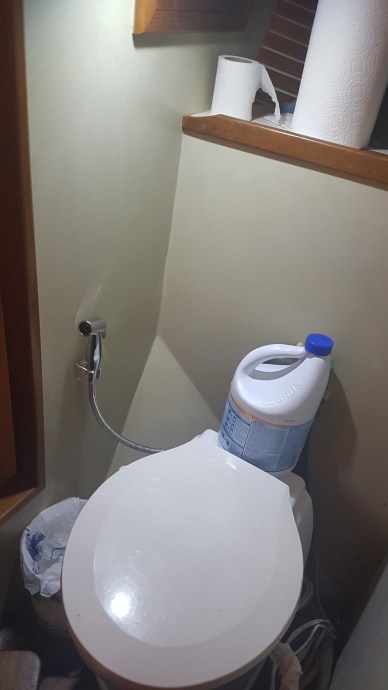

My new head water nozzle

My other little projects that were on the list was to add little water nozzles by each toilet.  It’s an eastern Asian thing and virtually every toilet in Vietnam has one, even the toilets that don’t have a commode. I also find it far more practical than a French bidet. Besides cleaning all sorts of things,  it can also be used to fight fires or water fights with mutinous crew!

What more can one ask for?

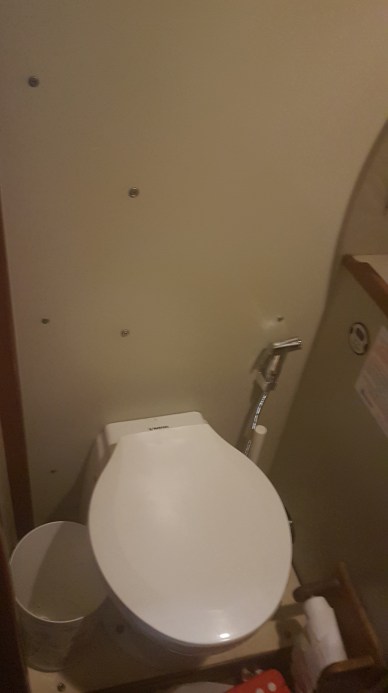

The Second head water nozzle

An Auspicious Start

Ever have those situations when the yellow/red flags are waving, and you spend all your time trying to decide if the flag is yellow or red? Instead of wondering what’s causing the flag to wave in the first place??

Our Intended Route in Red. Taking the time to get away from the coast seemed best for the forecast winds at the time.

Welcome to my world.

Brian and Mark arrived Sunday, the 29th of April. I was a bundle of nerves, due to:

  • The normal stress of starting a long trip,
  • The stress of having crew to keep happy,
  • I still had to check out of the port Monday morning,
  • Having decided to have the boat yard, do the transmission seals, they did not take credit card, so I must figure out a way to get $1000 in cash by Monday morning.

My Monday noon, all the problems were solved, and I was feeling pretty good. I had good, intrepid crew. We had food, wine and booze enough for however long a cruise the weather would allow.

With a crew of two, plus me, we had 205 gallons of fuel in the port tank, 210 in the stbd tank, 55 gallons of water in the port water tank and the stbd tank was empty (to be filled with the water maker while underway).

The track from the InReach at Share.Delorme.com/Dauntless
(If you go to that site, I do not know why the time is 12 hours off)

Engine start was at 12:25, we got underway 10 minutes later, clearing the breakwater at 12:45, on the way to either Can San Lucas, 950 miles northwest (7 days) or maybe even Ensenada, which was another 700 miles further north (another 5 days).

So, at the beginning of a 7 to 12-day passage, my sense of well-being lasted 20 minutes, or about 2 miles.

Clearing the breakwater, we set the course SSW to clear the coast before turning west, then WNW.

The bilge alarm sounded 20 minutes later, (a buzzer that

The Coastal Explorer, C-Map chart

is activated whenever the bilge pump is on), went off, and then sounded again a few minutes later. That was not normal. Thinking the stuffing box again, I left Brian at the helm, while I went to open the salon hatch to the engine room.

Stuffing box was not leaking, but I did see a pinhole leak that was spraying water from the oil heat exchanger. Umm, it’s a pinhole leak, sea water, yet the bilge pump had been on enough to pump much more water? What’s going on.

A minute later, as the engine overheat alarm sounded, it all became crystal clear. Shut down the engine, but we were less than a mile from the rocky shore.

Mark and Brian relax the night before our eventful trip

The engine coolant hose (a heater hose) from the engine to the water heater had failed at the nipple to the water heater. It has dumped all our coolant into the bilge. We were 6/10ths of a mile from shore; a very rocky shore. So, first thing I did was fill the engine coolant tank with fresh water using the garden hose the first owner had installed in the engine room just after the fresh water pump. It was good to know that I had a source of fresh water for the engine that I could use in a critical situation.

If push came to shove, I’d stick the nose nozzle in the coolant fill and turn it on, to keep water in the engine if I needed to start the engine before the repair was done.  We were in 160 feet of water, so I also had the option of dropping anchor.

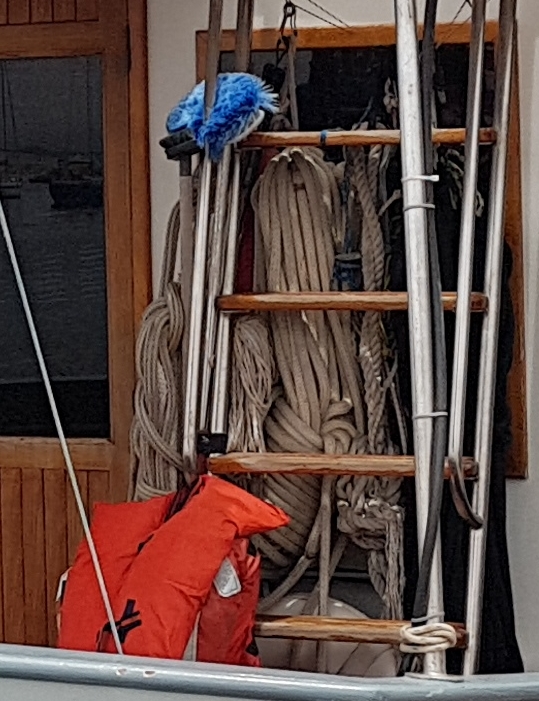

Lines stored behind the fly bridge ladder

Had I had a problem that was going to take longer to fix, or if I did not have fresh water available, or if I was alone, I would have let out 200 feet of anchor and chain, knowing that the anchor would set itself as the water shallowed. This is the emergency anchoring plan I always have in the back of my head while cruising near shore. In still deeper water, with no shelf, I would combine my two anchor rodes, the secondary being 50 feet of chain and 250 feet of rode (400’ of 3/8” BBB chain on the primary with 55# Delta anchor).

I also have stored behind the salon between the upper deck ladder:

  • a 500-foot line,
  • a 250’ line,
  • a couple of 50’ lines,
  • a few shorter line,
  • the stern anchor) Bruce) and it’s 300 feet of rode on a hose reel.



These lines can all be easily retrieved and used as necessary.

Had I been alone, that’s what I would have done, while turning the boat around and heading back to the marina on auto pilot. I could have then re-fit the hose, knowing I had at least 15 minutes before I needed a course correction.

But I was not alone.

With Brian at the helm, responsible for watching our drift, Mark and I proceeded to deal with our two problems, the coolant hose and the pin hole oil cooler leak.

The coolant hose was easily dealt with. Cut off the end and reattach to nipple. I then checked for leaks, as we started the engine. No leaks, so I filled the coolant tank with ¾ gallon of coolant. This all took 10 minutes.

Next to tackle the oil cooler. We first tried a quick repair; can we stop the leak enough until our next port.  No, we couldn’t, the metal at the cap end from which it was leaking was too thin. (these were the heat exchangers that had just been supposedly checked. In addition, I’m sure this was the one that was already leaking, and I told them to keep it).

Checking the situation at the helm, while we were drifting towards shore, we were drifting very slowly and again with Brian watching, I knew we would have plenty of warning should an issue arrive. Therefore, we decided to change the oil cooler.

What a PIA. But an hour later we were all done. No leaks of oil, water, or anything.

It’s on my must do list this fall to standardize all my hydraulic and oil fittings. Thus, making it easier to replace lines or bypass the coolers if need be.

We had drifted a quarter mile closer to shore, we still had a third of a mile to spare. Easy Peasy as Micah would say.

Knowing we could return to the marina easily, reduced the stress of this repair. It wasn’t “fix, or else” like it may have been in the middle of the Atlantic, like with my imaginary fuel leak.

At 14:10 we were underway again.

My peace of mind now lasted one minute.

The autopilot was not working. It thought it was working, but it wouldn’t steer correctly.

Back to the rear of the engine room, I looked at my Octopus pump, it looked ok, no major leaks, then I saw the three valves which control fluid to the pump, allowing me to change pump without draining all the hydraulic fluid from the system, were closed.

Oops.  At least that was easy.

A minute later, we were underway again, hopefully to Cabo San Lucas.

This time my peace of mind lasted a whole two hours.













Getting the Show on the Road

The best laid plans of mice and men often go astray.

Having gotten my toothache taken care of by having a root canal the first evening I was back in Huatulco, I was finally felling pretty good. The previous 5 days were a whirlwind of: pain, getting things done in NY, flying to southern Mexico and getting back to Dauntless after 8 months.

All winter I’d been watching the weather and winds off the west coast of Mexico and California. Jimmy Cornell’s World Cruising Routes and his updated Pilot Charts of the Pacific had made it clear that I would have a slog ahead, commonly known as the Baja Bash.  2,000 miles of going northwest into predominantly northwest winds of anywhere from 5 to 30 knots.

JimmyCornell Ocean Atlas Monthly Pilot Charts for all the Oceans

As mush as I love my Kadey Krogen, it has gotten me safe and sound through so much; I hate head seas.

But I had a plan. A pretty good one I thought. It was clear from the above references that I would have at best 25% of the time favorable winds. For every one day of good winds, I’d have three days of head winds. But as we all know, weather works in averages. I couldn’t exactly count on moving one day and then resting the next three. I could just as eiasily see 7 favorable days and a month of head winds.

Over the winter I had planned for slogging up the coast. Getting back to Dauntless the last week in April. I would spend May getting her a bit more ready. Fixing, replacing somethings that needed it and completing some projects stared long ago, but never completed as we cruised from Ireland to the Pacific Ocean in a little less than a year’s time.

My transmission and damper plate

This plan would have me leaving Huatulco in June as hurricane season started.

Perfect.

The dominate weather pattern is only disrupted by the tropical cyclone pattern of tropical depressions growing to storms and possible hurricanes. Their anti-clockwise wind pattern disrupts the dominant high-pressure system causing the NW winds off the coast. I could have days and days of winds with some southerly component.

The normal position of the Pacific High. This year is has been stronger and more persistent.

The only downside of this plan was that should the strengthening tropical depression or storm head northeastward towards the coast, I’d have to have my hurricane holes laid out.  Also, single handing on this coast is difficult, as places to stop because of weather are few and far between. For example, there is no safe hurricane hole between Huatulco and Acapulco, 250 nm or two full days away.

In the previous months, I’d also sort of put it out there that I was looking for crew.  With crew and a longer weather window, we could get up the coast in some large chunks.  Maybe even get to Ensenada in a 10-day passage. That would be so wonderful.

Pilot chart for the Pacific off Mexico

In March, I had gotten an email from Brian, who was volunteering himself and another friend, Mark, to help me get Dauntless north. The only caveat was, their free time was in early to mid- May.

I was very happy. I had not thought it wise to do this coast alone.  Coastal cruising is totally different than crossing oceans. In the middle of the ocean there are no fishing boats, pangas or other stupid stuff. The large freighters you may occasionally see use AIS and keep their distance (once I upgraded to an AIS transceiver in 2014).

The only downside was the weather. In May, the winds are steady and strong from the NW.  No tropical disturbances to disturb that pattern.  During the entire spring the Pacific high that generates the strong easterly trade winds over Hawaii and been doing its job too well. I seldom saw weather windows of more than a couple of days and the 25% favorable time was more like 10%.

Stuffing box wrench

I’d also be a bit rushed to get Dauntless in the water. But I was less concerned about this, as she came out of the water with just a minor transmission leak, that had grown progressively worse over the pervious 2,000 miles. So, I decided to have the boat yard in Huatulco fix the leak. This turned out to be a $1,000 mistake. With my time frame of having to leave now to best make use of my available crew, it left no time for the yard to correct what they didn’t fix.

More and more I realize that I need to do virtually everything myself on Dauntless. I hate paying someone for a half ass job, when I know that I can just as easily to my own half assed job for free!

Dauntless goes into water

I also felt time pressure because Brian had crewed with me on Dauntless two years ago from Ireland to Scotland and he had had to wait several days for the boat yard in New Ross to get everything done. I didn’t want to make him wait again. And yes, I know not to let a schedule dictate actions, but no matter what, I, as skipper feel and am responsible.

The only things that had been done was the transmission seals and I had removed all the heat exchangers, as one had a pinhole leak and I wanted them all, including my spares, checked and tested.

We ended up splashing the boat right on schedule, a couple days before Brian showed up. This whole sequence left a lot to be desired on my part.

My original plan was to do a little test run of an hour to make sure all systems were Go. But once they put Dauntless in the water, the winds were strong, against the marina, in fact, the port may have been closed, but in any case, with such winds, I wanted to only tie up once, not twice. As it was I had a hard-enough time getting the boat into her slip and at one point was 90° off. I had to rig a spring line around the piling that we were pressed against and use that to turn the boat to face the slip.

No, a test run was out. I felt lucky that I got Dauntless into the slip without damage. I didn’t want to press my luck. In hindsight, this was not the best decision, but it seemed so under the current circumstances.

Once in the slip, with the engine room bilge pump alarm was going off continuously, I was reminded that I should have checked the stuffing box while still on the dolly. Water was pouring into the boat.

After the initial cursing myself for not checking before, I realized the bilge pump was keeping up, barely.

I got my chain wrench and locking pliers and within a few minutes (unlike previous times), the nut was unlocked, and I could tighten the shaft nut my hand until most of the water stopped.

We were good to go, or so I thought.
