2020 Update on Paravanes and a Few Other Things

First, I’m still alive, though it was a close call. No, it wasn’t Covid-19, but something far worse, boredom.

I hate being bored and perversely, the less I do, the less I want to do. Thus, my creative energy that it takes to write these blogs or make YouTube videos seems to have gone into hibernation for the winter. Is it back now? Only time will tell, but since I’ve gotten a few emails asking if I was still alive, I thought I better get off my ass and write.

Second, also got an email complaining about the most recent appearance change on the blog I did a few months ago. They said it was harder to read because of the dark background. Honesty, I had noticed the same thing myself, but was hoping that I was the only one who noticed! See just lazy. Like hearing that strange noise in the middle of a passage and just hoping it goes away on its own (fat chance).

Tell me what you think of this new theme (background) and if anyone has any suggestions &/or improvements, I would be glad to hear them, though the easier they are for me to implement, the more likely it will happen.

Third, living on the Dauntless in the winter in Alaska is very different than crossing oceans or cruising to new and strange lands. More on this later, as it will be the topic in an upcoming blog.

Lastly, below is a blog I wrote mostly about the paravanes in 2016. I did write a summary of what I have done and the final paravane system setup. I will post that in the separate post.

My shopping cart with the new birds

While In Astoria, Oregon, last summer, I was finally able to get two new paravane birds.  Over 25,000 miles and 5 years, I had left the USA with 4 paravane birds, two 26″ and two slightly smaller at 24″ (as measured at the base of the triangle of the bird).  Going to 24″ was a mistake. I was so happy with the performance of the 26″ birds, I thought I would try the 24″ to see if they was as effective, but with reduced drag. Yes, just like a perpetual motion machine!

If I have learned anything over the last 6 years, it is that you can not escape the physical laws of the universe. Work (as in the physics definition of work as the product of Force and distance) perfectly explains the effectiveness of the paravane birds and the drag they produce.

Therefore, If I deploy just the windward bird (being the most effective), if it reduces the roll 80% of what both birds would do, then the drag will also be 80% of the total speed reduction had I deployed both birds. In the same way, the 24″ birds did not induce as much drag, but they also did not reduce the roll as much.

So, last summer, I decided to buy the 28″ birds, while in Astoria, at that glorious store, Englung Marine. With stores in the Pac NW, along the coast from Westport WA to Eureka, CA, it’s a must stop for any boater who wants the best bang for their buck.

I didn’t have a call to use them after the first day out of Astoria, but I did use them just the other day when we were returning to Wrangell from a a few days of cruising and fishing. The wind had picked up to mid to high teens from the south, producing a nasty very short period sea of 2 to 3 feet. With such a sea on the beam, this Kadey Krogen will get into quite a quick, deep roll of about 10 degrees to the lee and 5 or 6 to the windward.

Not terrible for what D and I have been through but a different story for the Vietnamese landlubbers. Also, the boat is set up for living aboard in port, not crossing the Atlantic, therefore, I deployed one bird immediately and was impressed how much the one 28″ bird suppressed the rolling.



An earlier post:

Less is Not Always Safer, More is Not Always Better

2019: This was written in June 2016, but never published. The recent Trawler Forum post about paravanes made me look for what I had written already and discovered I had never published this. So , here it is.

June 11, 2016 – The Pacific Rim or Less is Not Always Safer

While the Pacific Rim is my destination, I am actually referring to the movie, Pacific Rim Movie. Not the best of movies, I still find it hard to get my mind around why a giant robot would be effective against a giant monster.  Let’s not even address the premise that this giant robot has to be controlled by two people.

Two people, they must not have done 3 legged races in camp as kids.

But I am sitting here in Largs, Scotland listening to the soundtrack, which is dramatic.

It’s good Dauntless music.

But besides the soundtrack, I do love Idris Elba.  And if you have not watched Luther, make sure you watch it from season 1, episode 1.

But then he really made his  name in The Wire as Stringer Bell. A depressing, but extremely insightful series.



I’m waiting for my next crewmates to arrive, Dan & Robin.

Brian left yesterday and of course he took the good weather with him.  From his second day, we had nothing but fair winds, sunny skies and beautiful cruising.

That also allowed us to get Dauntless more organized and in ship shape having sat in the wind and rain for 8 months.  There are still a few projects to complete.  My new goal for the Wallas DT40 heater is to have it completely installed before I reach Alaska.  Stay tuned. (Ha, still not installed, but I’m not in Alaska yet!)

I also had the opportunity to redo my geometry to determine the deepest I can run the paravanes birds without the possibility of hitting the prop or rudder.

Just to show that the laws of math and science have not changed all that much in the two years, the magic number is 17 feet, which is the same number I came up with two years ago.

Now, if you have been reading my blog for any length of time, you will know of my tendency to rant and rave about politicians who make decisions not based on any facts or science, but simply because it looks, sounds, tastes good.

Well, I am guilty of doing the exact same thing in this case.  Which further makes my case that the right number is the right number, more or less does not make it any better, just different.

So in my case, I came up with 17 feet.  This was also confirmed because my friend Larry on Hobo, another KK42, runs his at 18 feet because his poles are about 2 feet longer than mine.

So two years ago (2014), having the magic number of 17, I decide to make it 15 just to be on the “safe” side.  Sounds like a no-brainer right?  Then as I am actually rigging them, I decide to take another couple feet off, to make my no-brainer even better.

What could go wrong?  Am I not being 50% safer?  That’s what a politician would try to tell you.

No, I was being an idiot. Made even stupider because I of all people have taught wave mechanics and what happens to the actual water molecules in a wave.

In last fall’s crossing of the North Sea, it all became clear.   While crossing the North Sea from Norway to Scotland in September 2015, on the first day, (of the 4 day trip), the winds were from the NW at 20 knots, gusting to 37, producing seas 12 to 18 feet.

Crossing the North Sea

But the paravanes were not as effective as they should have been. I realized I was running the birds too shallow.  The paravane bird was getting caught in the rotor of the wave.

Waves are created by energy passing through water, causing it to move in a circular motion, producing a rotor. While the wave progresses, the particles of water in the wave itself, move up and down.  If you watch a leaf floating on the water, even though the waves move, absent current, the leaf stays in place.ocean wave

Therefore, instead of pulling the boat down and thus reducing the rolling motion, all of a sudden the bird is actually being pushed up.  Sometimes this would cause the bird to fly out of the water.  Once I stopped and put another 5 feet on line on the bird, all was good and I got to Scotland.

So less is not always better.

And now, I will show you why more is not always better either.  Having Brian on our 2016 maiden voyage turned out to be, was a godsend.

I had a thinking partner who helped me articulate my thoughts and ideas.

The only moment where two people was a detriment and not a plus was in getting back to Dauntless on the dingy.  I got out, Brian got out, the dingy drifted away.

We started the engine, detached ourselves form the mooring and the dingy was reacquired 10 minutes later.

Had either of us been alone, we would have known the dingy was not secured.

Dauntless on a mooring in Scotland



Less is Not Always Safer, More is Not Always Better

This was written in June 2016, but never published. The recent Trawler Forum post about paravanes made me look for what I had written already and discovered I had never published this. So , here it is.

June 11, 2016 – The Pacific Rim or Less is Not Always Safer

While the Pacific Rim is my destination, I am actually referring to the movie, Pacific Rim Movie. Not the best of movies, I still find it hard to get my mind around why a giant robot would be effective against a giant monster.  Let’s not even address the premise that this giant robot has to be controlled by two people.

Two people, they must not have done 3 legged races in camp as kids.

But I am sitting here in Largs, Scotland listening to the soundtrack, which is dramatic.

It’s good Dauntless music.

But besides the soundtrack, I do love Idris Elba.  And if you have not watched Luther, make sure you watch it from season 1, episode 1.

But then he really made his  name in The Wire as Stringer Bell. A depressing, but extremely insightful series.



I’m waiting for my next crewmates to arrive, Dan & Robin.

Brian left yesterday and of course he took the good weather with him.  From his second day, we had nothing but fair winds, sunny skies and beautiful cruising.

That also allowed us to get Dauntless more organized and in ship shape having sat in the wind and rain for 8 months.  There are still a few projects to complete.  My new goal for the Wallas DT40 heater is to have it completely installed before I reach Alaska.  Stay tuned. (Ha, still not installed, but I’m not in Alaska yet!)

I also had the opportunity to redo my geometry to determine the deepest I can run the paravanes birds without the possibility of hitting the prop or rudder.

Just to show that the laws of math and science have not changed all that much in the two years, the magic number is 17 feet, which is the same number I came up with two years ago.

Now, if you have been reading my blog for any length of time, you will know of my tendency to rant and rave about politicians who make decisions not based on any facts or science, but simply because it looks, sounds, tastes good.

Well, I am guilty of doing the exact same thing in this case.  Which further makes my case that the right number is the right number, more or less does not make it any better, just different.

So in my case, I came up with 17 feet.  This was also confirmed because my friend Larry on Hobo, another KK42, runs his at 18 feet because his poles are about 2 feet longer than mine.

So two years ago (2014), having the magic number of 17, I decide to make it 15 just to be on the “safe” side.  Sounds like a no-brainer right?  Then as I am actually rigging them, I decide to take another couple feet off, to make my no-brainer even better.

What could go wrong?  Am I not being 50% safer?  That’s what a politician would try to tell you.

No, I was being an idiot. Made even stupider because I of all people have taught wave mechanics and what happens to the actual water molecules in a wave.

In last fall’s crossing of the North Sea, it all became clear.   While crossing the North Sea from Norway to Scotland in September 2015, on the first day, (of the 4 day trip), the winds were from the NW at 20 knots, gusting to 37, producing seas 12 to 18 feet.

Crossing the North Sea

But the paravanes were not as effective as they should have been. I realized I was running the birds too shallow.  The paravane bird was getting caught in the rotor of the wave.

Waves are created by energy passing through water, causing it to move in a circular motion, producing a rotor. While the wave progresses, the particles of water in the wave itself, move up and down.  If you watch a leaf floating on the water, even though the waves move, absent current, the leaf stays in place.ocean wave

Therefore, instead of pulling the boat down and thus reducing the rolling motion, all of a sudden the bird is actually being pushed up.  Sometimes this would cause the bird to fly out of the water.  Once I stopped and put another 5 feet on line on the bird, all was good and I got to Scotland.

So less is not always better.

And now, I will show you why more is not always better either.  Having Brian on our 2016 maiden voyage turned out to be, was a godsend.

I had a thinking partner who helped me articulate my thoughts and ideas.

The only moment where two people was a detriment and not a plus was in getting back to Dauntless on the dingy.  I got out, Brian got out, the dingy drifted away.

We started the engine, detached ourselves form the mooring and the dingy was reacquired 10 minutes later.

Had either of us been alone, we would have known the dingy was not secured.

Dauntless on a mooring in Scotland



Still Plugging Away in Vallejo, But a New Tale of Adventure and Woe on the High Seas

My fresh water replumbing job was 75% done yesterday, today it’s 50% and even that took a couple of hours. Suffice to say that the floor of closet now looks like Charlie Kruger took to it with a chain saw. No pictures, since many who read this are carpenters or at last know how to work wood and the pictures are not fit for a mature audience.

My beloved grill already for another 5 years

But it does bring back some painful memories. My first wife had asked me many, many times to repaint some chairs we had. Finally, I did. I laid the yellow paint on nice and thick, so the old color would not show through. I was pleased, though they took days to dry. Finally, I presented my masterpieces and she asked me about those drip marks. What drip marks? They weren’t there when I put them to dry. I hope she’s not reading this and cringing.

I stuck to things mechanical and electrical after that.

Who looks at the bottom of the closet anyway?

I have finished some small things though. I replaced both burners and the electric igniter  on my Weber Q300 grill. That grill has spent 5 years on the ocean. I’ve been quite pleased with it.

I also installed the new thermostat in my Raritan water heater. I did notice in my travel this week that both the thermostat and heating element are available at your local Home Depot for roughly half the price. It’s expensive to print the word “marinized” on the box.

The tangle around the prop that was removed today

Last, but not least, I had a diver come by to check my bottom. Well, Dauntless’ bottom. And sure enough, I had a little collection of lines around my prop. I’m so happy. Coming up the California coast, I thought I felt a slightest of vibrations. Almost like a shudder every few seconds. It would not have been noticeable to anyone else and Larry didn’t feel it, but I knew. Even wanting to be wrong about it, I knew. I was worried that I had tweaked the prop. Worse yet I thought I had tweaked it by doing something stupid. Yes, even stupider than the last stupid thing.

We were underway from Ensenada to San Diego, eagerly anticipating the celebration with fireworks and fire boats that was sure to wait us in the old U.S. of A. It had been 4 years after all.

This shows the Maretron Data of Pitch (left) and Roll (right). You can see where I deployed the paravane because the roll was reduced by more than half at about the 28 minutes ago mark. You can see that it also reduced the pitch, but that is not to be expected. It happened this time because of the combination of NW swell and West wind waves as were headed NNW.

The wind was light, 10 knots from the west on our port beam. With the added Pacific swell from the northwest, the boat’s rolling had increased as the day wore on. By early afternoon, the roll was 10° to starboard and about 5° to windward or port. But occasionally the roll increased to 15° & 10°. That’s a difference of 25° and usually is the point where I really notice the roll and so I will put one or both paravane birds out. In this case, I just put the windward bird out. That would dampen the roll about 50% and we only lost 0.4 knots. A good price to pay for a nicer ride.

This picture I took as the boat slowed down, so the bird was back under the water.

Suddenly, close to the USA-Mexico border, the ride of the boat abruptly changed. It became very smooth. I jumped up from the pilot house settee to look at the paravane and see that we had snagged hundreds of feet of line connected to pots, I guessed. I estimated hundreds of feet, since I could see at least 100 feet strung in the air, then to the bird which was well out of the water.

I chopped the power, the boat slowing quickly. But now, the line of the pots was snagged on the bird, but stopped dead in the water, with the pole vertical, we had all the dead weight of whatever that line was attached to.

I got the not so bright idea to go in reverse. Possibly, the line would un-snag itself at that point. It’s worked in the past, but no luck this time.

Larry and I heaved and heaved and got the line up to the bird, at which point, we cut the snagged line away. This line also had several floats on it. Once cut away, the floats and line and floating right next to the hull amidships.

Until now we had done almost everything right. I just needed to be a little patient.  But patience is not a virtue I have been gifted with. I decided to go forward to get away from the floats. Yes, by running over them. Sounds stupid even in the writing. Sure enough, within seconds the line was in the prop. I stopped the motor and cursed at my stupidity.

That done, I put her in reverse, as I have unwound lines that way also. In this case, no and hell no. There came a hellish scream, which I attributed to a float being wound around the prop scrapping the hull.

Wow, as I write this, details came back that I totally forgot about!

I went in the water. I lowered the swim ladder, climbed down the ladder to the lowest rung and stood there, while Larry handed me the boat hook. I was able to snag the line using the boat hook, since it was about 10 feet under the water.

We got that line up to the boat and cut it.

I then backed up again and we were free.

But from then on, I felt this slight shudder. Had I tweaked the prop? I didn’t know until today.

I do have a SALCA cutter anode (model 2000, 2″ diameter) on the shaft, just in front of the prop. I’m sure it has saved me many times and even this time, may have helped. But that pile of lines now on the dock, was wrapped around the prop since San Diego.

In thinking about this incident, I also realize that the paravanes were well designed for incidents like this. I’m sure that is the most force put on that pole and lines since installation. The 3/8” Amsteel Blue line fore guy did its job. To stop the roll suddenly and slow the boat so abruptly, there must have been thousands of pounds of force to the aft on that line. It’s tied off permanently at the bow hawsepipe and cleat. I have it doing 4 turns over the cap rail, with a clove hitch before it’s tied off on a cleat. Thus, the cleat never really sees significant force, even under these circumstances.

Thank you, John Duffy in Miami, for doing such a great job with the paravanes.

I think I’ll have a celebratory drink, since I missed the fireworks and fireboats in San Diego.\

And I’m looking for a decently priced Hookah outfit. I need to be even more self reliant.





Hindsight is Not Always 20-20

Despite my accomplishments this past year, another 2500 miles behind me, the Golden Gate in front of me, the Baja bash, Panama Canal, the Atlantic Ocean, behind me, I wonder if I did not make some big mistake.

Anchored in Finland.

For not the first time, I wondered about my sudden decision to flee northern Europe two years ago. I loved northern Europe. I loved Ireland. I loved the peoples and the cultures.

I lived for 4 years in Germany and still visit relatively often. The Germans certainly have some interesting attributes. Some of which I even like a lot.

In 2015, I was reminded just like 30 years ago, the different personalities the Germans are along the north coast. These are the people who have known “Auslander”, (from an outside land), for thousands of years. They are not the Germans of the much more insular interior, one meets south of Hamburg down to the Alps.

I dwell on this because stupid Google, out of the blue the other day, sends me my pictures of years ago and says, “don’t you want to post these?”

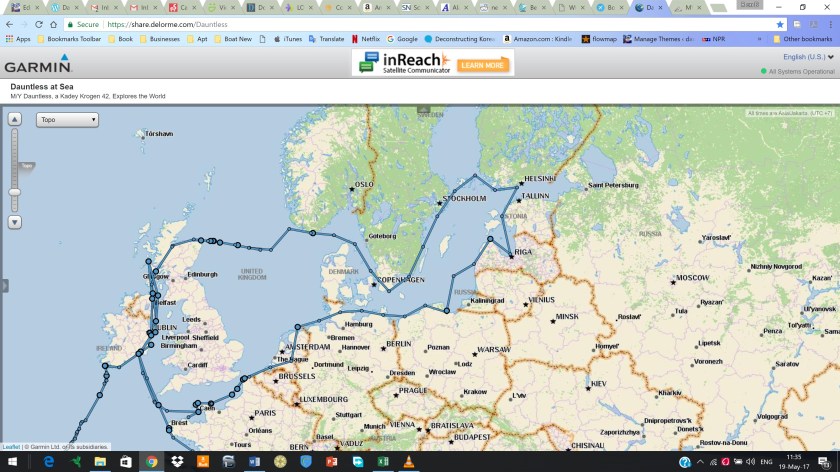

It reminded me yet again of how great the cruising was along the north coast of Europe, Scandinavia, the Baltic and North Seas. The cruising is the best I’ve yet encountered, with thousands of miles of protected skärgärd cruising. With the wind blowing 20+ knots, 100 meters away, you are cruising or anchored with nary a ripple of waves.

Cuxhaven, Germany

All the peoples who inhabit the environs along the coast are sea faring folk. Much like the Celtic culture along the west coast of Europe, from Galicia in NW Spain to Scotland, The North Sea and particularly the Baltic had the Hanseatic League. From Hamburg to Tallinn, they controlled trade and influenced culture from Germany to Russia.

This seafaring culture manifests itself in boat friendly, stranger friendly ways. No matter how small the port, or how many boats are already there, they will find room for you. In the more formal marinas, like Tallinn and Cuxhaven, the American flag was being put up on the yardarm of the marina even as I checked-in. And even check-in itself was a 5-minute process, with reasonable rates, about $0.25 per foot in Holland to $1.00 per foot in Helsinki. Overall average for marina overnights ended up being less than $0.50 a foot for my 4 months in the Baltic and North Seas.

Haapsalu, Estonia
Tallinn, Estonia
Robbengat Sluis
Holland
Waterford, Ireland

All these experiences were exactly the opposite in southern Europe, by the way. 30-minute check-ins, filing out endless forms, each time, $1.00 per foot was best price and it went up to $2.00.

I was also reminded with much regret that the $1,000 ten-day stay I had at Cabo San Lucas was the same cost of one year! in Waterford, Ireland. Sure,  Waterford could not boast like Cabo of having only 7 days a year with rain, but I am sure they can boast that they have at least 7 days a year with sun.

So, all these fond memories really made me question my decision of leaving Europe in 2016. Stupid Google also reminded me of my great trip to Galicia to scope out a winter home for Dauntless the following year. Food, people and marina in A Coruna were fantastic. I could stay there for $500 per month year around.  Had I stayed another year as planned, I would still have some options. I could return to the Baltic the following summer or just stay in Northern Spain and Western France. I would have also saved so much money.

Oh Regrets. What would life be without them?

Probably a hell of a lot better!

I acknowledge that 2016 was a traumatic year for me. I  often wonder if unexpected life changes led me to make some hasty, irrevocable decisions? It certainly seems so to me when I think and think and think about it.

It would have been just as easy to fly between Ireland or Spain and Vietnam. I picture myself escaping the heat a humidity of Vietnam for the damp coolness of Atlantic Europe.

One key factor drove my decision to leave for the Pacific, the availability of crew. My Hawaiian nephew wanted to take a year off from school before he went to law school. He thought exploring Europe, North Africa and the Caribbean via Dauntless would be ideal. He spent almost a year with Dauntless and I.

He was indispensable. Not only as a great, hardworking, vigilant crew mate, but also as a smart, interesting companion for the boring passage between Europe and the Panama Canal. I couldn’t have come that distance without him.

Dauntless is in Vallejo, California now. I’ll return to her next week for a month of getting her in ship shape. Next spring, I’ll return and weather permitting get her up to the Pacific Northwest by June, then British Columbia and Southeast Alaska for the summer.

Ending up in one of the wonderful, little towns of Southeast Alaska. Which one, will depend on several factors, Dauntless taking second stage for now.

By next year at this time, my life will take another turn, as I gain both a First and Second Mate on Dauntless. We’ll end up staying in Southeast Alaska only a little longer than originally planned. Visa requirements for my wife-to-be and her son require us to live in the United States, so SE AK is the perfect place to settle down for a while and catch a few fish and enjoy the fantastic scenery and wildlife.

What would have happened had Dauntless still been in Europe now? I would truly have a mess on my hands. Instead of struggling with a 2500 trip, I would be looking at 10,000+ miles. Eek!!

Everything happens for a reason. Two years ago, I had no idea I’d fall in love with the love of my life, yet again (ok, I’ve had a lot of lives). Or that she would be in Vietnam or that I’d spend all my free time with her in Vietnam.  Or that SE Alaska, then so far away, now so close, would be the perfect place for a variety or reasons.

Trinh and I in SaiGon, Vietnam

Sometimes even a blind squirrel finds an acorn.





Third Time is the Charm; But it Wasn’t Easy

leaving Cabo the first time on 13 May

After arriving on the southern tip of Baja California May 9th, two weeks later we are faintly getting out of this tourist trap. Oh, Cabo, or better yet, Cabo Falso, has finally loosened her grip on us to to us pass.

My two previous attempts were unpleasant at best, more like miserable. And on each the previous attempts to round the cape in ferocious seas and winds, I had tried two or three times, either tacking away from shore or closer to shore to escape her grip. Each time, I dragged myself back to Cabo, tail between my legs.

On the second attempt, the autopilot also started to not act right, so I felt the failure even more.

My Octopus pump. the top screw was leaking
The screw, replacement “O” ring and broken circ clip for the Octopus pump

With thousands of boats in Cabo San Lucas, I thought it would be easy to find the little “O” ring and broken circ clip my Octopus pump needed. After walking around to numerous places in the hot sun, I found the ring, but not the clip. I called my followers who is a plethora of mechanical advice (he’s the one who told me how to make emergency hydraulic fluid in the middle of the Atlantic), who explained that the circ clip was just a stop, so the screw would not come all the way out.  It was already out, so that solved that problem. I put the new “O” ring on, leak stopped, and pump worked fine.

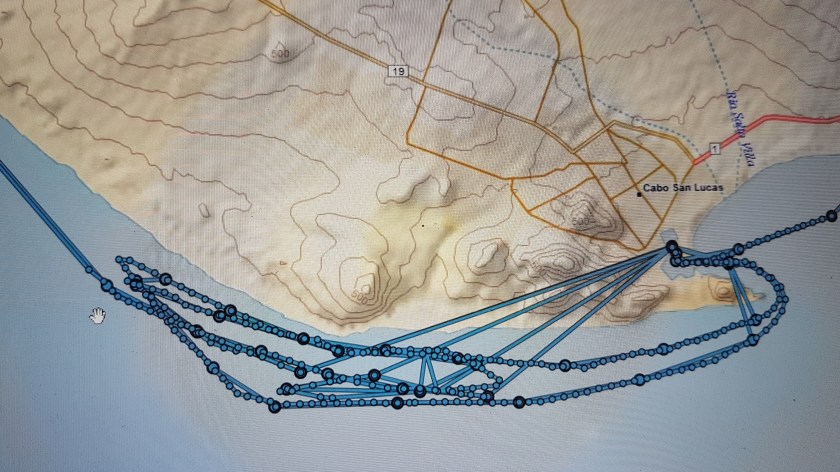

The Garmin InReach track for the May 13, 20 and 23.
The superfluous tracks are Garmin’s way of introducing us to their world. https://share.delorme.com/dauntless

I am really in debt to Octopus Pumps. This is on the list of winter projects. I really need to have a spare.

We waited and waited. I was very conscious that every day was costing me $100+ The reality is on my budget with all the cruising I do, necessities come first, so a marina becomes a convenience. Thus, it’s the one place I really try to try to control my costs.

That I didn’t like Cabo just added insult to injury.

I make a habit to only look at Windy.com and the forecast winds once or twice a day. With crew on board, I look at it more often to make them happy, but I really don’t. The nature of forecasts is that if they change radically, they are most probably wrong. Thus, once a day will provide enough guidance. Also, while nowadays, the forecast models are run more often, at least every three hours, planet Earth still has a 24-hour day. In simplistic terms, the winds and weather are driven my differential heating caused by our day and night cycle. Therefore, running the model more often does helps, but it won’t totally cure instability issues with the forecast.

I know this is getting too complicated. Let me say this, if you are waiting for a specific weather window, like I was in Cabo, how many times have you noticed that during the day, the forecast is changing, only to return to what it said originally 24 hours later? So, looking at a forecast more than a couple times per day is simply not helpful and more often confusing. This was quite apparent as I watched the winds off the southern Baja Peninsula.

The other phenomena with numerical forecasts are the sliding weather window. I mean it shows favorable whatever in the 24 to 48-hour time frame. But the following day, the favorable whatever is still forecast to come in the 24 to 48-hour time frame. It’s like the forecast is waiting for something to happen. It is in fact; numerical models are just predictors of fluid dynamics. But something in the real world is not acting like the model suggests. Therefore, it keeps sliding the forecast.

Which is fundamentally why numerical models have not replaced weather forecasters. Weather forecasters will know the proclivity of each model for each area and time of season. Changing seasons is the biggest bugaboo for both man and machine. That’s why some months are easier or harder to forecast.

Enough weather for now.

Rounding Cabo Falso

On 23 May 2018, we finally got underway heading to Ensenada with stops along the way. The first protected stop was Maddalena Bay, about 200 miles up the coast.

Our track on Coastal Explorer. We are finally past the point that we turned around last time.

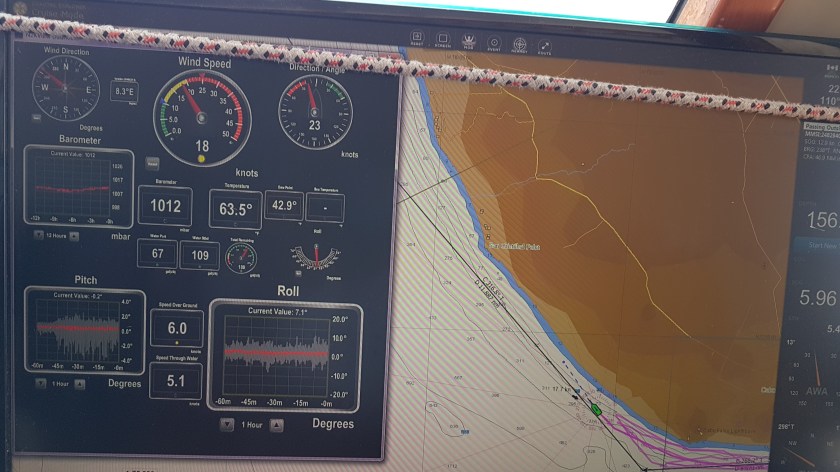

Coming abreast of Cabo Falso, winds had picked up to 310° at 15 gusting to 25 knots. I put one bird in the water to reduce the roll, which had gotten to 10° to 15° to port, as the winds were on the forward starboard quarter. We were pitching 6° to 8° up and down. Not fun, but tolerable for a while.

Six hours after departure, we were finally around the cape and heading NNW. Winds had died down to 10 knots, but we still had an unpleasant pitching motion.

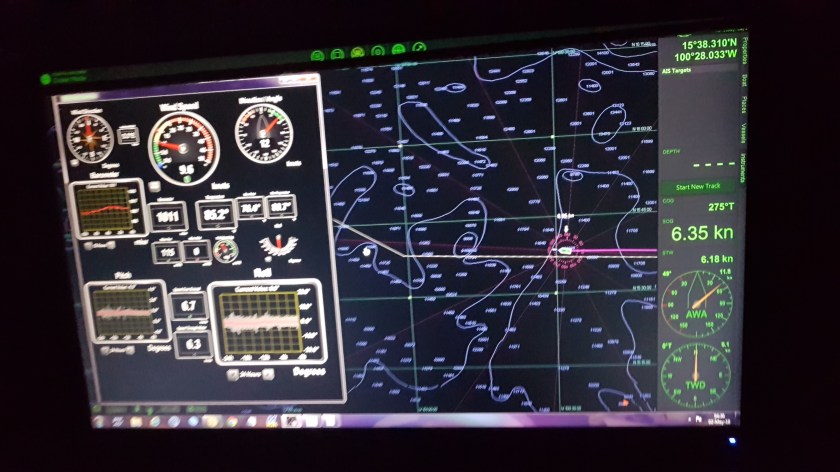

Night view of Coastal Explorer our first night out of Cabo.
You can see the pitching and rolling motions for the last 12 hours on left on bottom of screen.

During the spring and more recently in my time in Cabo, it was apparent that there are three distinct weather regimes off the Baja coast. The southern third has the strongest and most consistent NW winds. The second third has slightly more variety, while the last third, north of Tortuga Bay, must more variable weather, more like southern California.

Our Coastal Explorer chart showing our route for the previous 36 hours, after arrival in Magdalena Bay
Navionics on Tablet, further out view on Coastal Explorer, as we proceed up the channel in Magdalena Bay

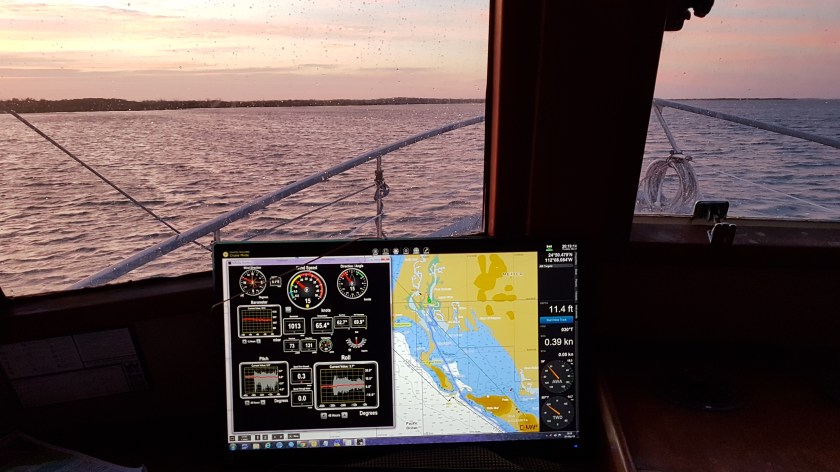

Another view out the pilot house window, with Maretron and Coastal Explorer chart

Not until we were close to Magdalena bay did the winds back around to the west, though they were strong at 15 to 20 knots.

We pulled into Magdalena Bay 17:00 on the second day, the 24th, we then spent a few hours going up channel to Puerto San Carlos, to be protected from the coming wind storm.

Another view out the pilot house window, with Maretron and Coastal Explorer chart. It did stay like that the entire time

This leg’s summary: 188 nm, 35 hours, 25 min, avg speed 5.45 knots

Now, let’s check out that dingy. If you missed that fiasco, see:

https://dauntlessatsea.com/2018/07/14/the-dingy-fiasco-part-1/



An Eventful Passage

Only an hour and a half after leaving the wonderful little stop of Marina Chahue, Dauntless’ winter home, we were underway once again. I wanted nothing more than an uneventful passage. I was so appreciative of Mark and Brian stepping up and volunteering as crew, so I wanted them to have a good time too with no worries.

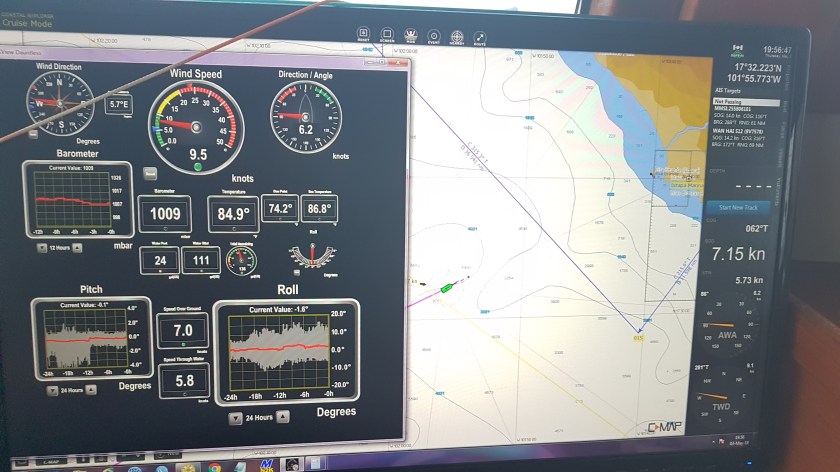

Beginning of Day 2, 07:53

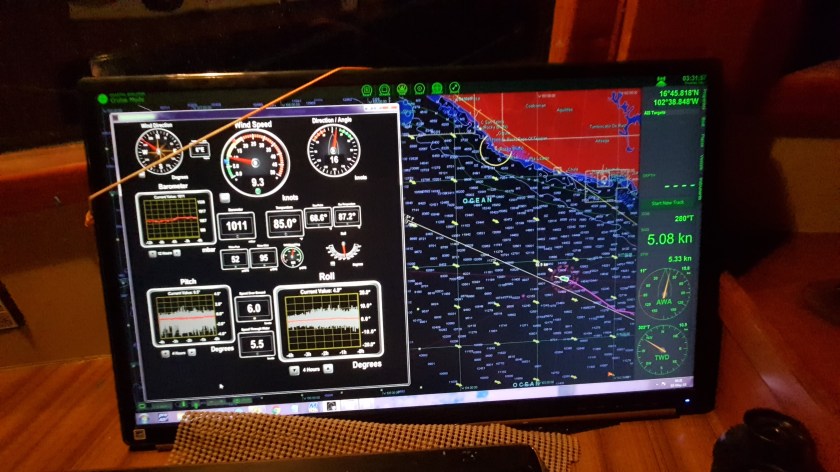

End of Day 1, First night, 04:45

Now I realize, that having a “good” time varies greatly from person to person, but in general, being on the open ocean is peaceful. It can be the epitome of serenity itself, unless there are nagging issues.

Beginning of Day 2, morning after the first night, 07:53

Dauntless was suffering from abuse. In the pervious two years, I’d ridden her hard and put her way wet. I loved this Kadey Krogen so much because I could do exactly that. The leak in the heat exchanger was the first “must stop the engine” problem I’d had since the middle of the Atlantic! That was more than 5,000 miles and 18 months ago.

End of Day 1, First night, 05:51

This boat was made to take a beating and keep on ticking. But just as rough seas bothered me far more than Dauntless, the little problems on the periphery did the same. They kept me in a state of what’s next?

We spent the next 40 hours going west. I’ll explain why in more detail in the upcoming post, Chasing Weather Forecasts, but for now it suffices to say that I wanted to be 60 miles off the coast.

We were also running a bit harder than usual; the Ford Lehman was purring along at 1800 rpms. Maybe the purr was more of a growl to me, but it was important that we make good time while we had favorable winds, in this case they were WSW at 5 knots and we were making 7 knots.

The primary reason I don’t run at 1800 rpms is the significant decrease in efficiency from 1500 to 1800 rpms. Here are my estimated numbers in a flat sea:

 Kadey Krogen 42-148 w Ford Lehman Sp135 & 4 Blade Prop
 RPMs  Gal/hr  Avg Sp Range
700  Kts nm
  1,800     2.00       7.2   2,520
  1,700     1.75       6.9   2,760
  1,600     1.55       6.6   2,981
 1,500     1.40       6.2   3,100
  1,400     1.25       5.7   3,192
  1,300     1.10       5.3   3,373



Thus, for a 16% increase in speed from 1500 rpms @ 6.2 kts, we consume 43% more fuel. That’s fuelish.

By early morning on the second day out, we turned northwest, on a heading that would parallel the coast until we could turn further north in a couple more days. Winds were still OK, from the north at 10 knots, thus on our beam, but not strong.Evening of the of Second Day

By the end (48 hours underway) of the second day, we had covered 320 nm for an average of 6.7 knots. The pitching and rolling had been minimal, pitch less than 3° up or down and rolling less than 5° in either direction (always greater to lee side).

Day 2, 24 hr since departure
Evening of the of Second Day, 19:48
End of Second night, early morning, 04:25

But then it all started to change. From the beginning there was a smallish weather window, from 2 to 3 days. Now, during our third night, that window was closing. Winds picked up to 320° @ 12 knots, so only 15° off the starboard bow (our course being 304°). Pitching increased to +4 (this is downward as measured by the Maretron Solid State Compass (which the autopilot uses too since it reacts better than the flux gate compass) and a more significant, -12° (bow pitching upward).

This was getting uncomfortable. For my intrepid crew, they took it in stride, far better than I.

The third night, 03 May 03:32 Maretron data shows the pitch lower left graph (each unit is about 4 degrees of pitch).

Our watches were set so that I would get 6 hours sleep overnight. Brian and Mark covered 21:00 to 04:00 as they saw fit.

End of the third night, 3 hours after last picture, ride is better, but winds are picking up, now at 9 knots, but gusting to 16 ( upper row, middle, telltale on the winds)

Before going to sleep that night, I did discuss with them the issue of weather. Our weather window was not only closing, but the forecast was for increasing winds right on our nose for the foreseeable future. While I was still hoping to get to Cabo direct from here, that was still 3+ days away. 12 knots on the bow is tolerable, 15 is borderline and 18 is a no-go.

Sunrise on Day 4

They were up for it; as I went to bed that evening, I wasn’t sure I was.

I awoke 3 hours later. The boat was pounding, not constantly, but on every third pitch. Pounding to me is when the boat slams into a wave, like hitting a log. Thump.

I tried to go back to sleep. The master cabin in the Kadey Krogen is forward and the only downside is that this pitching motion is most apparent there.  However, it usually doesn’t bother me. My first experience with a corkscrew movement was a few years before Dauntless came into our lives. We were sailing (literally) with my Dutch friends, Jan and Karin, in the Outer Hebrides, west of Scotland. Anchored in a rolly harbor off of St Kilda, that night I felt, dreamt, that I was sleeping on a roller coaster. The rhythmic corkscrew motion I found almost soothing. I slept well.

But this was different. The pounding bothered me. Things break with that sudden, jarring movement (and in fact it was during these days that the pressure switch stopped working on my fresh water pump. I later discovered it only had soldered connection which came apart).

My sleep became very fitful, waking every 10 to 15 minutes, my mid seemingly wanting to figure out what was going on. Finally, I turned on the light and tried to figure out the pattern the boat was in. For 30 minutes I measured the frequency of the pounding. On virtually every third pitch, which were 8 d=seconds apart, the boat would pound hard, every 25 to 28 seconds.

I also knew that which these seas, pitching movement, unlike rolling, takes significant power. In other words, instead of going 7 knots, we were now going 5.5, but using the same fuel as if we were going 7.

At 5.5 knots, it would take 100 hours to get to Cabo, that’s 4+ days of this crap. That was impossible.

I decided to start my watch early, figure out if we could mitigate the ride and if not, determine my options.

First thing I did, after I got the lay of the land, was to reduce rpms to 1650 and change course by 10° to the west. This put the seas on the stbd bow. Weirdly, our speed just slowed a tad to 6.0 from 6.1 (we also have currents off the Mexico coast, which are both tidal and non-tidal).

Significantly our pitch was reduced by almost 50%. I liked that. Even more importantly, the pounding stopped.

I could live with these conditions.

Alas, they were not to stay.

Just before sunrise, around 05:00, the winds increased to 330° @ 12 gusting to 16. This increased the pitch +4 to -8° and the roll +10 to -9°. I further reduced the rpms to 1590. Over the next couple of hours, Mother Nature started to mock me. The winds backed around to 290°, right on our nose again.

At 08:00 the winds were steady at 300°12 to 14 knots. I knew they would only get stronger during the day (the sun heating the air and land do cause the winds after all).  This was also in line with the forecast of increasing winds over the next few days.

At 08:45, I informed the crew that we were changing course and would head to Xtapa, a little town with a nice marina just north of Zihuantanejo. This would mean a bit of backtracking. We were already north of Xtapa; however, the other alternative was Manzanillo, which was 113 nm at 330°. With the seas on our bow, increasing winds, it would take us 24 hours to get there. Whereas, Xtapa, at a heading of 065° would put the seas behind us and we should have a quick 12-hour ride. So long, because we were 70 miles offshore.

It ended up taking 14+ hours, but after pounding into the seas for 10 hours, who noticed.

Passing thru the shipping lanes, it was nice to have the Digital Yacht AIS transceiver.  It allowed us all to avoid one another.

14 hours later, at 23:00, we entered yet another unknown harbor and docked in the dark, at Marina Xtapa

What else is new.

I did get a good night’s sleep.

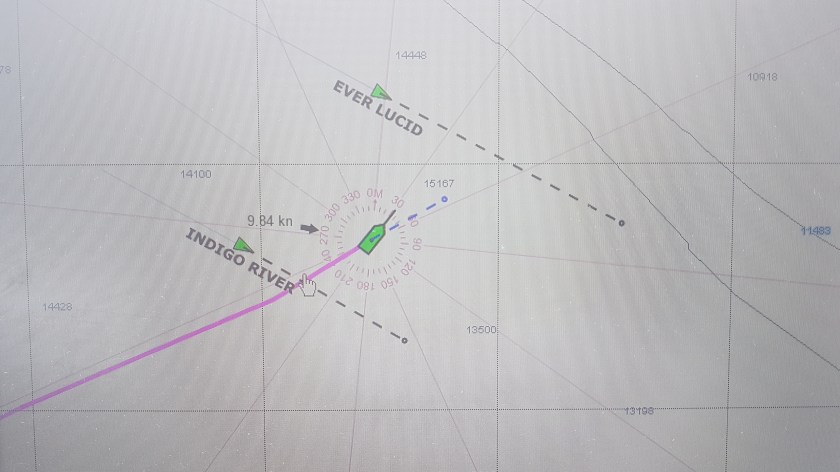

Four hours after we made the turn to head to Xtapa, we are bracketed by two freighters. Again AIS transciever makes this easy for ALL concerned.
Depiction on Coastal Explorer
Four hours after we made the turn to head to Xtapa, we are bracketed by two freighters. Again AIS transciever makes this easy for ALL concerned
What it looks like looking out the window
What it looks like looking out the window
The Maretron data shows how much better the ride became, though rolling continues.
The Maretron data shows the four days of Pitching and Rolling. The last day before we turned to the east was untenable with pitching as much as 20 degrees.









I Fixed My Watch

I’ve dropped my watch a number of times on my tile floor.  A couple of times, the crystal has popped off.  Just

My Skagen

pressuring it back on was simple.

Then, once the face also came off, as well as the minute hand.  That took a bit more effort and thought to put straight.

Two weeks ago, I dropped it yet again, while thinking that I better not drop it, and this time the damage was extensive, it that all the pieces came apart.

This was not a simple fix.  I tried; for days.  Two of the pins were obvious.  But there was smaller brass peace only a 6 mm in diameter that for the life of me, I could not get to fit.  Worse, I was not even sure how it fit.

I took pictures, I enlarged those pictures.  I tried to align the pieces as best I could be hoping for a miracle, that all four pins would just fall into place.

It didn’t happen.

I prayed. I begged. No joy.

I knew I could send it in for repair, but one thing crossing the Atlantic has done for me is to make me self-reliant.  I don’t need no stink’in warranty center.

This piece goes on top of that piece

It finally occurred to me that I had to go back to basics.  I needed to further take apart some pieces and then piece it back together.

That process still took an hour, but when done, my watch was as good as new.

Crossing oceans takes a well designed and built boat, enough fuel and food and most importantly, the confidence to get it done. Nothing else matters. Not the weather nor the seas nor how tired, bored, cold, hot or scared you feel.

On our first summer on Dauntless, in Down east Maine, after having been ensnared on a lobster pot line for over 8 hours, with help still 8 hours away, my partner turned to me and said, “no one is going to help us, we must do it ourselves”

Less than an hour later, we were free.

And I’ve never looked back.





An Opportunity

The plan is coming together.

Dauntless Rests In Fish Hook Marina, Golfito

With my new USCG Document clutched in my sweaty hand, Dauntless and I will get underway in July.

It will be three months of moving north to winter in northern Mexico.  So, the trip that started in Ireland a year ago will come to a close this fall.

But I also find myself alone for the first time in a long time.  Being on the ocean, cruising alone is not so bad, boring more than anything.

Coastal cruising, what we’ll be doing for the next couple years, is much more stressful.   People, rocks and fishing nets are all close to shore and give you the opportunity to get into trouble.

Therefore, another set of eyes or a couple of sets becomes very helpful.

I have people coming in September and probably late August, so for now, I am looking for a couple or single(s) who would like to spend some time on Dauntless as we cruise north in Costa Rica and then the three-day passage to Mexico.

This will be a good opportunity to experience some coastal and an off-shore cruising. Email me if you think you may be interested and we can talk about more specifics.

Richard on Dauntless

Below is the current tentative schedule:



06-Jul-17 Costa Rica Golfito
13-Jul-17 Costa Rica Punta Arenas Azul
21-Jul-17 Costa Rica Playla Coco
28-Jul-17 Costa Rica Santa Elena
04-Aug-17 P Mexico Check-in Chiapas
09-Aug-17 P Mex Puerto Angel
13-Aug-17 P Roquita Island/Acapulco
16-Aug-17 P Zihuatenjo
20-Aug-17 Caleta de Campos
24-Aug-17 Cabeza Negra N
26-Aug-17 Manzanillo
31-Aug-17 Puerto Vallarta
05-Sep-17 Mazatlán
25-Sep-17 Guaymas



Cruising Costs of a 42 foot Kadey Krogen

Having some time on my hands for another couple of weeks, I thought I would share with everyone what the Cruising Costs have been for Dauntless, a 42 foot Kadey Krogen Motor yacht over the last two years.

I’ve broken out the numbers, so for instance, if you only go to a marina 10% of the time, you can adjust the numbers accordingly.

If you have any specific questions, I will be glad to answer them, but please email me vice PM.

May Thru October 2016 My approximate route. Most of the little black dots are stops

The number don’t add up to 100% because there are some personal travel expenses, which I track but are not pertinent to the story.

Also, the significant difference is that in 2016 I was able to buy 900 gallons of fuel in Ireland for very reasonable prices (far less than UK “red” diesel).

In 2015 because Dauntless range under such conditions, I had to refuel with very expensive fuel in Finland, Sweden and Norway, arriving back in Ireland with almost empty tanks.

Marina costs were significantly higher in 2016 because Portugal, southern Spain, Atlantic France are significantly more expensive than many Baltic and North Sea marinas.





2015 Baltic and North Sea Cruise

Food costs are pretty much for a couple.

In the next weeks, I will update the latter half of 2016, the trip from Rota Spain to Gibraltar, Morocco, the Canaries and Martinique.

2017 update will be from Martinique to Panama Canal, Costa Rica and up to Mexico for the winter.





Envy

So, I was reading the adventures of M/Y Dirona as she crosses the North Atlantic.

Check out Dirona’s Atlantic Passage

It made me envious; I know, that’s ridiculous, but still.

Dauntless has come so far

Dauntless spent two and a half years in Northern Europe because I knew we would like it. The weather, the people, the cultures all, the food, fit my number one criteria of staying off the beaten track and living well as I did so.

I Loved the Baltic, Sweden, Norway, Scotland & Ireland

That was expected. All the lands of coastal Northern Europe have a real seafaring culture. Every boat waves at you, especially fisherman. From Galicia in northwest Spain to the far eastern Baltic, it was a wonderful experience with minimal bureaucracy.

In those 2+ years, 20+ countries, 100+ stops, mostly in towns and cities, I probably spent less than 120 minutes on the formalities of checking in (Passports, boats documents, crew lists) and checking out.

No wait, there was no checking out.

The peoples, the lands, met and greatly exceeded my expectations.

Then, we headed south. 90% of all boats are south, mostly in the Mediterranean, you know, Italy, Greece, Turkey and southern France and Spain. Everyone wants to go there, so that’s a big Do Not Enter sign for me.

So, we headed south with low expectations. Little did I realize they were not low enough.

Prices trebled, temperatures doubled and bureaucracy was like a pig is slop. The first two stops in Portugal took the same amount of time as the last 100 stops of the previous two years.

And then it got worse.

In virtually every stop, 5 to 10 pieces of paper to sign to check-in; make sure you return tomorrow to fill out and sign the same papers to check-out. Don’t even mention the expense.

But you have read all of this before.  Turns out Martinique was the high point of the entire Caribbean. It’s almost weird to say that they were the least bureaucratic.  In fact, they were just like northern France.  But that was certainly the exception.

So now, having endured all of that and more to get Dauntless a quarter of the way back around the world, I sit here with envy of Dirona.

But I realize it’s not Dirona I’m envious of, it’s being in the middle of the ocean.

I’m a traveler, so when I’m not, I’ll always be envious of those who are.





Why We Cruise

Some people cruise to escape the responsibilities they face on land.

RIchard on Dauntless after Crossing the Atlantic OCean
Richard on Dauntless after Crossing the Atlantic Ocean

Most people cruise to enjoy nature and experience new sights, people, foods and cultures.

I cruise to solve problems.

In the past week, I have had a number of discussions with friends and fellow cruisers.  Many ask, Richard, you are in a place, the eastern Caribbean, that most boaters would love to be. Why not stay longer; stop and smell the roses?

I ponder a bit, questioning in my mind why, what is so obvious to most, eludes me.  Am I deficient?  I know I am not stupid, but why do I push myself so?

Truth be told, I could go from island to island, bbq on the boat most days, eat out others, drink a few glasses of wine, maintain Dauntless, myself and the love of my life in the manner I’ve been accustomed to, even travel to Asia, Europe and the USA every year and never run of money.

I tell them I have a plan. Plans can be changed they respond. Yes, I think, I change plans all the time. But I always have a plan.  When I do things without a plan, bad things happen.

No, nothing gets done without a plan.  And yes, even crossing the Atlantic was being planned before we even found our little Krogen 42.  It was being planned before I even knew Kadey Krogen’s existed. It’s what I thought about before drifting off to sleep on most nights.

So, the idea of having no plan, just going with the flow, is simply a life I cannot imagine.  It would be easier for me to imagine living on Jupiter, the planet, not the city.

So, when I’m asked why not just do this the easy way? I have no problem answering, because it’s not in the plan.

There is one big caveat.  I love sharing the joys of life, food, drink, laughs, experiences, with friends and loved ones.  Not having a mate, a partner to share these experiences with this past year has put a damper on the cruising.  If I had a mate who absolutely wanted to be in such in such place for a long time; I’d make it happen. Then I would modify the plan, but until than…

Now one of my really smart friends, knowing my answer, suggested why not do a boat trade.  Surely there is someone in Alaska who would trade places with you. Let them live on your boat and you live on theirs’s in Alaska since that is your intended destination for this coming summer and next winter.

Now that has me stumped momentarily. But then, like a light bulb turning on, I understood the issue.

If my goal was just Alaska, then staying in the Caribbean for another year would be doable.  Even trading boats or leaving Dauntless here for a year would be doable.

But from the beginning of the boat idea.  From before the first Atlantic crossing, there was a plan, a goal and destination and everything that came before was a step towards that destination: S. Korea & Japan.

So, I cross oceans to get to the other side. I also do it because it is the ultimate problem solving puzzle.  No phone, no help, it’s having a good plan and then adjusting the plan as need be.

It’s having to make do with what you have a not what you want.

It’s having to solve problems.

Throughout my life, in every endeavor I was involved with, I strived to make the system better ev, oftentimes to the detriment of my life or career.  In hindsight, I should have done some things more delicately, but I don’t have any regrets.  You fight the good fight or you may as well be the cow in the field eating grass.

So even as careers change and jobs end, I am still a problem solver. Cruising gives me the opportunity to solve problems.  The best part is that they are problems of my own making.

I make mistakes and curse myself once in a while.  I take a 1 hour job and make into a day or two, but at least I am cleaning up my own mess.

When that next destination comes into view, I pat myself on the back and say, Well done pig, well done.

Q & A After the Atlantic Crossing

My Friend Alfa Mike asked the following, so I thought I would share with everyone:

Richard on Dauntless in Martinique, La Marin
Richard on Dauntless in Martinique, La Marin

>Do they speak a lot of English Language in Martinique or is it all French?

The Moon & Venus watch over us on our last nights
The Moon & Venus watch over us on our last nights
Until the very end, a story sea
Until the very end, a story sea
A little mishap while changing the oil just after arrival
A little mishap while changing the oil just after arrival
Mountain on Martinique
Mountain on Martinique
Driving thru the forest
Driving thru the forest
More Rainforest
More Rainforest
Even made it to the Kadey Krogen page
Even made it to the Kadey Krogen page
La Marin Marina
La Marin Marina
  • some English, once in a while, you need to know some basic French.

> What have you seen & experienced there?
This past weekend, we drove up north to see rain forest and volcano.  Inactive of course, so not much to see.
> What have you done in the boat while there.?  Repairs, upgrades?

at this point, there is still much to do.  Not helped that yesterday I spent all day to do a 1 hour job.  I hate working with wood, like the interior.

  • Working on electric in fwd bilge, adding small bilge pump.
  • Rewiring holding tank switch so that it can’t get turned on accidentally.
  • Micah patched dingy.
  • Rerigged paravane pole.
    • One pole needs to be replaced. Probably do that in Mexico or So Cal.
    • Also, rigged a preventer so windward pole will not go vertical when boat rolls heavily to lee side.
  • Finally finished 3rd 20# bottle of propane yesterday.  Those 3 bottles were filled in Tallinn in July 2015. That’s 7000 miles ago.  Luckily have two extra bottles that a sailboat boat gave me in northern France last summer as he was not going back to USA. I have not been able to get propane since Estonia last year, but am told I can in St Lucia.  But I can wait till So Cal possibly.
  • Must still replace 2 hydraulic hoses and bleed system for AP and helm steering.
  • Complete oil change, i.e. fill engine with oil.
  • We’ll fuel again in St. Lucia, only to half full about 250 gal
  • Repair bracket for wx instruments on mast, the following winds (when we were stopped for Hydraulic line) managed to wrap paravane line around it and mangled it, because I was so happy to get one problems solved, I created another one.
  • Winds also broke stern flag pole. Same happened to Sweden sailboat docked next to us.
  • All 5 fuel filters are changed (2 Racors, 2 engine mounted and fuel polish)
  • Replacing all screws in rub rail is proving to be a real PIA. As they are rusted and not coming out. These are Inox screws I bought in Ireland and again in Portugal. Big f…ing mistake.
  • General clean up, still finding flying fish on fly bridge (where else would they be 🙂
  • Spent $200 on stainless steel screws.
  • Another $200 on oil and ATF for rudder steering
  • $200 on rental car for 3 days
    Yes, everything is in increments of $200.
  • Finally took Icom VHF radio to shop, as my friend Pat in Waterford told me to do last year. It’s unfixable it seems. So, will take VHF radio from fly bridge and install in pilot house.
  • Need to still upload a billion pictures to http://dauntless.smugmug.com/

> How has the weather been?

  • Is it Humid? Hot, a bit muggy, yesterday was first day without wind, so then the boat really heats up.Did I tell you I don’t like hot weather?  Thus the 12 years in Alaska and two years with Dauntless in Northern Europe and now returning to first Southeast Alaska and then Japan & S. Korea.

>Now after all is said and done, In hindsight what would I have done differently?

  • In terms of places to go or not, it’s hard to say. Only having spent time in southern Spain and Morocco can I say that I would not have missed it.  But had I not gone, how would I know that?  It would have better financially and sailing wise to go direct from the bottom of Portugal to Las Palmas on Grand Canaria.
  • Should have spent some hard-earned money 3 years ago, to be able to use 230v, 50hz shore power to run ACs. I did try to get them to run off inverter, but the inverter produces a square sine wave and both the Splendid washer/dryer and the AC’s will not run on that.

I could have tried the transformer I use not for the water heater.  It would supply 120v, but 50hz to AC.  That swill probably work. But at this point, I’m not sure it’s worth the effort.  Back in Southern Spain and Portugal when I was dying of the heat, I should have thought of that.

Yes, I could always run generator, by the 1 gal/hour at $5/gal fuel. Now, 8 hours is only $40 per day, but adding that to expensive marina at $55/day, that’s close to my desired cap of $100 per day.

  • Speaking of money. My average daily cost for all living and boat expenses is about $109 per day.  Though I still have yet to update the last month, I do not think it will change significantly.  This is also a few dollars below the previous year.  So, all in all, the expenses are about what I expect.  The proportion is also the same, 25% for each:
    • Fuel & oils
    • Marinas & docks
    • Food, groceries & eating out
    • , like cell phone, transportation, cars, trains, planes and automobiles.

> How do you like it in Martinique?

  • Love it. People, food could not be better. I am so lucky that I was told to head here when it became clear that I could m=not make the southing I needed to get to Barbados.  It was only a 20° more southerly course, but with the large seas we had, it was not worth being beaten up.
  • In hindsight, Martinique is a much nicer place to clear in, eat and drink than probably anyplace in the Caribbean. Martinique is a Department (like a State) of France.  Thus, it feels like France because it is France.  It’s not the bureaucratic mess that Portugal, southern Spain and Morocco are.
  • FYI in terms of how they treat boaters:
    • Northern Spain, Galicia is just like northern Europe and France, as are the Cana.ries.
    • Southern Spain and Portugal were totally different, and not in a positive way.
    • I was told that it’s because of the Arab penchant for bureaucracy.

> How long do you plan to stay?

  • until sometime next week. Then heading south, a bit before heading west to the ABC’s

> Any comments you would like to make about the trip you just completed now that your more rested up?

  • Very glad I don’t have to do it again for another 18 months
